R&D type impinging jet nozzle dryer

The dryer for your laboratory

Menschick R&D dryer is the complete, compact nozzle drying solution for your laboratory. For manufacturers as well as fabricators of print colours or coatings our R&D dryer is the ideal equipment for product development.

Because our small scale R&D type impinging jet nozzle dryer works exactly the same as a convective dryer on the scale of production plants, drying results can be accurately transferred. As a consequence, in most cases time-consuming and expensive experiments on production plants are no longer necessary.

  • Highlights of the Menschick R&D dryer
  • Space-saving design
  • Mobile by caster wheels or hinged feet for fixed installation
  • 32A Cekon jack for Plug & Play installation
  • Easy and intuitive operation via touch screen

This impinging jet nozzle dryer consists of two zones having an upper housing with interchangeable nozzles in slot or perforated type design (width of 550 mm (22”)). Each zone has a length of 500 mm (20”) and is equipped with a separate built-in air fan and heater. Thus, temperature as well as nozzle discharge can be adjusted individually per zone. Underneath these nozzles is a conveyor belt on which you can easily put the samples. The conveyor speed is continuously adjustable. Each zone works with recirculation air. The exhaust fan at the bottom zone, in combination with a manual damper enables balancing of the exhaust air rate. To clean or change the nozzles, you are able to simply open the dryer by use of the pneumatic cylinder and the small compressor.

R&D type impinging jet dryer with nozzles in slot type design

R&D type impinging jet dryer with nozzles in slot type design

Drive side of the R&D type dryer

Drive side of the R&D type dryer

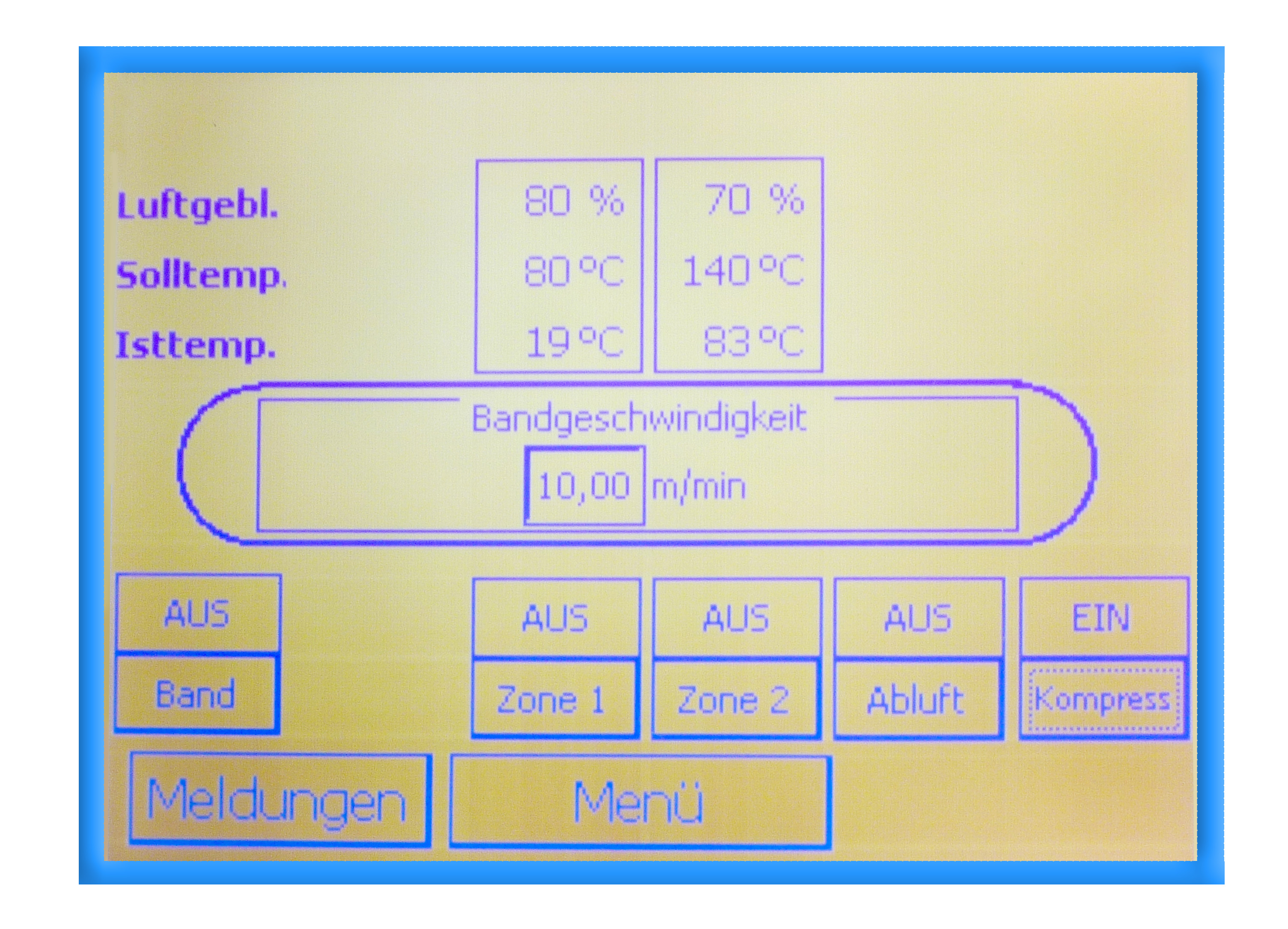

Touch panel of the R&D type dryer

Touch panel of the R&D type dryer

Technical facts of the Menschick R&D dryer:

  • Functional principle: impinging jet nozzle dryer
  • Dryer length: 1m (39.4”)
  • Number of drying sections: 2
  • Length per zone: 0.5m (19.7”)
  • Width of nozzles: 550mm (21.7”)
  • Width of conveyor belt: 700mm (27.6”)
  • Height of conveyor belt: about 1.1m (43.3”)
  • Speed of conveyor belt: 0.5 to 10 m/min (1.6 to 33 ft./min)
    continuously adjustable
  • Interchangeable nozzles (slot or perforated type design)
  • Air discharge and discharge velocity (continuously adjustable per zone):
    maximum of about 1100m³/h (650 cfm) and 30 m/s (98 ft/s)



  • Drying temperatures: between 20 (68) and 120°C (248°F)
    (continuously adjustable per zone)
  • Heating capacity: 7.5kW per zone
  • Number of exhaust fans: 1
  • Capacity of exhaust air: about 500m³/h (300 cfm)
  • Electrical supply: 3x400 V, 50Hz, Cekon plug 32A
  • Connection power: 21 kW
  • Total size:
    Length x Width about 1.85 m x 1.45 m (73” x 57”)
  • Height closed / hinged open: about 1.85 / 2.05m (73” / 81”)
  • Total weight of about 800 kg (1750 lb)
  • Compressor for dryer opening and exhaust air fan
    are included

During planning and execution of your projects we will gladly assist you with our expertise. We are your expert partner for hot air drying systems. The Menschick R&D type dryer optimally completes our customized, innovative solutions.
